LP3 outdoor Hrash
Standy-By Emergency Inverter For Elevator…
keep the lights ‘’ON’’ when you need them the most.
Three Phase 3KW - 80KW
3, 4.5, 6, 8, 10, 12, 16, 20, 24, 30, 40, 50, 60, and 80KW
208Y/120, 480/277, 208, or 480VAC
208Y/120 or 480Y/277VAC
The Lynx Power 3 (LP3) maintains efficient AC Emergency Power to operate all elevators, providing superior dependability and security to commercial/industrial enivornments in a small footprint.
5 kVA – 80 kVA output uses the latest DSP/PWM technology to provide the most advanced performance and reliability features.
208, 240, 480 VAC input 60Hz
208, 240, 480 is ≥92% efficient at 100% linear load
10 Minutes Standard (Consult Factory for 90 minutes or greater).
Sealed, maintenance-free, lead calcium (AGM) batteries.
10-Year prorated warranty.
DSP/PWM Smart Battery Monitoring System is TEMPERATURE COMPENSATED maintaining maximum runtime and battery life.
Microprocessor controlled recharge and DSP/PWM overcharge protection standard.
Meets NF PA 101, NFPA 70, NEC and OSHAstandards
Cities of Chicago and New York approved
Complies with the Buy American Act
Surge protection against track overshoots
Input Under/Over Voltage
Output Over Voltage
Output Over Load
Over Temperature
Smart Cooling system
Off-site Monitoring system
• Modular design enables flexible installation
• Forced air cooling for maximum reliability
• Systems up to 12 KW are self contained; larger systems
require external battery cabinet(s)
Modular design and small footprint allow easy installation in electrical closet or other convenient locations
• Phone assisted factory start-up standard for all systems
• Extended warranty available
• 1-Year full warranty on system electronics
• System 1-year on-site warranty labor with
DSPM phone assisted start-up
• 5-Year powertrain warranty
• Maintenance contracts available
Utility Present
When an elevator car is moving toward the ground, it generates power.
Lynx Power captures this power condition and stores it on its Batteries.
Battery Mode
In the case of a power outage.
Defender systems will convert the power on batteries to the required output power for the load.
Regen Mode
When the utility is present the load is connected to the Defender system.
Defender takes the utility power condition to the required output and provides power for the load.
Simple Installation and Low Maintenance
Utility Present
When an elevator car is moving toward the ground, it generates power.
Lynx Power captures this power condition and stores it on its Batteries.
Battery Mode
In the case of a power outage.
Defender systems will convert the power on batteries to the required output power for the load.
Regen Mode
When the utility is present the load is connected to the Defender system.
Defender takes the utility power condition to the required output and provides power for the load.
Simple Installation and Low Maintenance

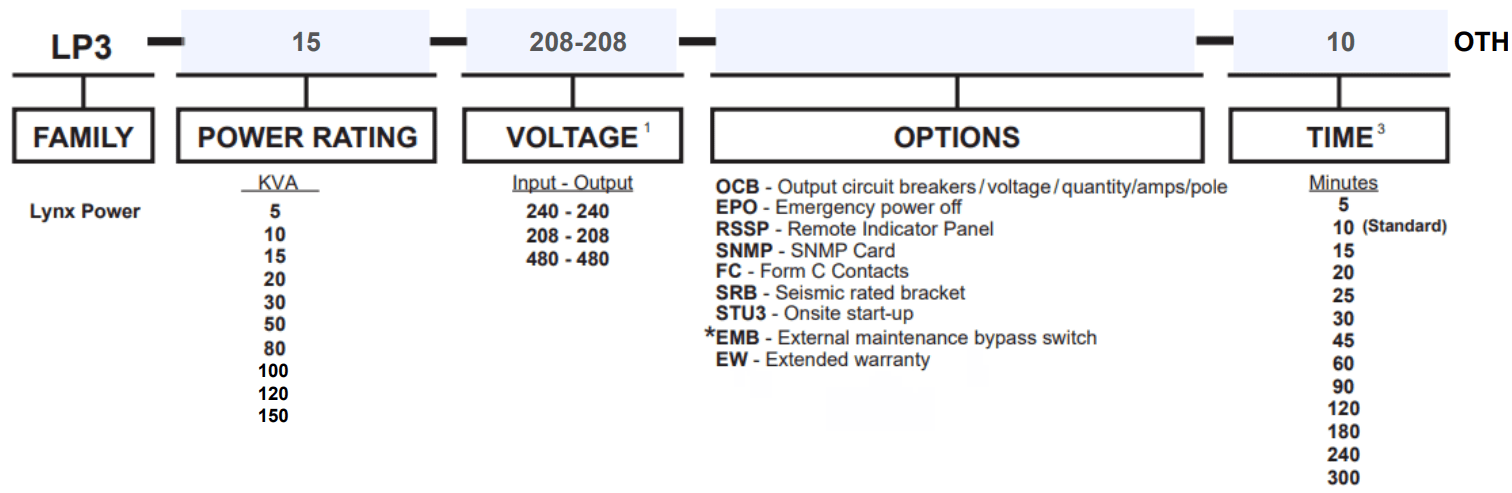

ordering information
Choose the bold face catalog nomenclature that best suites your needs.
Write them on the appropriate line. Order accessories as separate catalog number.
Example:
LP3 – 15 – 208 – 208 – 10 OTH (minutes of KVA backup. Consult Factory for 90 minutes or greater)
Description of example:
(15KVA, 208 Voltage In, 208 Voltage Out, 10 minutes, Outdoor Harsh)
